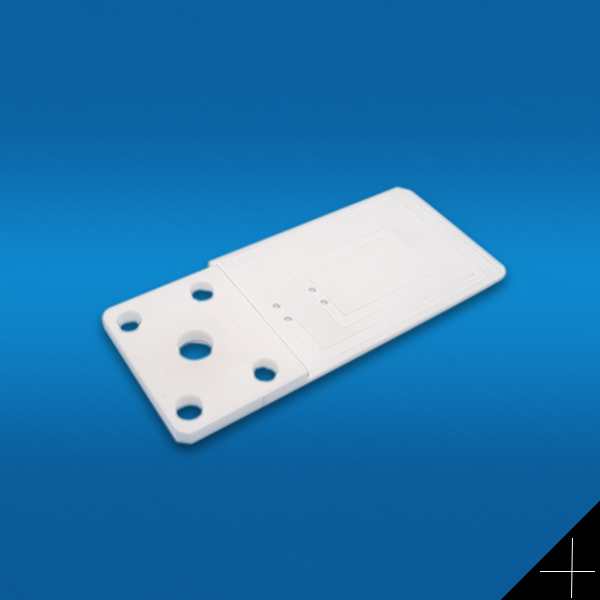

Ra0.02 polished PCB circuit heat sink zirconia ZrO2 ceramic plate sheet
Reputation depends on quality, quality comes from Hard!
Zirconia Ceramic:
Zirconium oxide ceramics are white, yellow or gray when containing impurities, and generally contain HfO 2, which is not easily separated. Pure ZrO2 has three crystal states under normal pressure. The production of zirconia ceramics requires the preparation of high-purity, good dispersion properties, ultra-fine particles, narrow particle size distribution, zirconia ultrafine powder preparation methods, zirconia purification mainly chlorination and thermal decomposition, alkali metal Oxidative decomposition method, lime melting method, plasma arc method, precipitation method, colloid method, hydrolysis method, spray pyrolysis etc.
Alumina ceramic properties: High strength, high hardness, crash resistance, wear resistance, corrosion resistance, smooth surface, low thermal conductivity, nonmagnetic etc.
Data Sheet↓
| Item | Unit | Typical Values |
| Physical Properties | ||
| Color | Customized | |
| Density | g/cm3 | 6.0 |
| Zirconia Content | % | 94.4% |
| Gas permeability | 0 | |
| Water Absorption | 0 | |
| Crystal Size | um | 0.5 |
| Mechanical Properties | ||
| Rockwell Hardness(45N) | R45N | 78 |
| Vickers Hardness (Load 500g) | Gpa(Kg/mm²) | 11.5(1175) |
| Flexural Strength(20°C) | Mpa | 800 |
| Compressive Strength(20°C) | Mpa | 2000 |
| Modulus of Elasticity(20°C) | Gpa | >200 |
| Fracture Toughness(20°C) | MPam1/2 | 9.0 |
| Thermal Properties | ||
| Thermal Conductivity(20°C-400°C) | W(m.K) | 2.5 |
| Thermal Expansion Coefficient | 10-6/°C | 9.6 |
| Thermal Shock Resistance | △T°C | 250 |
We offer full range of ceramic washer, spacer, seal ring and other parts for industry applications like bushing, pump seal ring, shaft ring, etc.
Our alumina ceramic rings/loops are exported to USA, Canada, Europe, and South America and Southeast Asia.
Accept any repair of the product, help to improve technology for customer. And also provide long-term technical help and support for you.
Our factory has a rigorous, professional and veteran quality assurance team, all processings strictly perform the ISO9001 quality management system.
In order to maintain product performance and stability, and to achieve the level of the industrial standard, we execute incoming quality control, in-process quality control, and outgoing quality as the core processes of our quality system.
We got professional inspection team and equipment, and treat every product to a strict standard, dimensional accuracy up to 0.001mm, we will not to allow failed products to enter the market.
We are able to produce a scalable quantity of ceramic parts, even if one-off prototype, or a large scale production, our facilities and expertise is ready to undertake customers' diverse needs.
For custom parts, you will get free quote within 24 hours (depending on the complexity), and to meet the urgent needs, we keep material in stock to make the lead time shorter.
