Zirconia Ceramic Parts

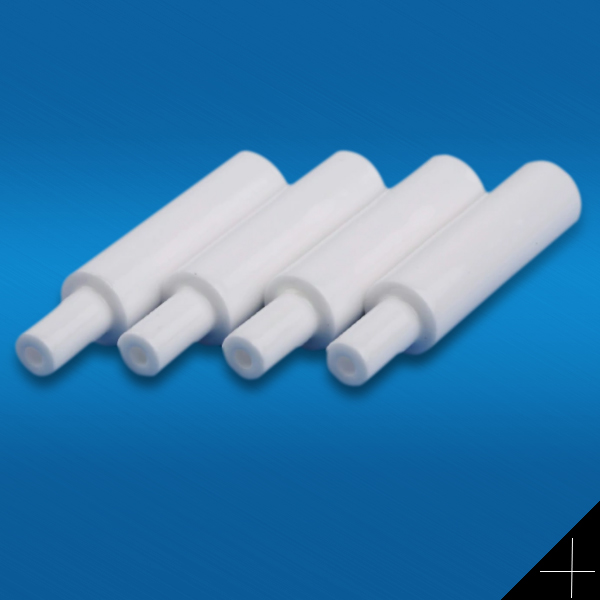

  • Zirconia ceramic nozzles,zirconia nozzles
Zirconia ceramic nozzles,zirconia nozzles

Zirconia ceramic nozzles,zirconia nozzles

  • Application: Ceramic Decorations, Refractory, Structure Ceramic, Industrial Ceramic, Machinery, Electronic, Chemical, Petroleum etc.
  • Material: Zirconia Ceramic
  • Size:According to Drawings
  • Feature:High Precision, High Mechanical Strength
  • Product description: Zirconia ceramic nozzles
  • INQUIRY   EMAIL
Product Description:
Glazed High Purity Al2O3 Zirconia Ceramic Tubes
Product Attributes

Model No.: pwc.00.1

Brand: powerceramic ceramics

Color: White

Material: 95%  Zirconia

Specification: On The Request

Surface Treatment: Glazing

Features: Excellent Insulation And Withstand Hi-voltage

Application: Ceramic Insulator For Oven Spark Plug

Supply Ability & Additional Informations

Packaging: Export carton

Productivity: 50,000 sets/month

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 20,000 sets/month

Certificate: RoHS

Payment Type: T/T,Paypal,Money Gram,Western Union

Incoterm: FOB,CIF,FCA

Delivery Time: 30 Days

Packaging & Delivery
Selling Units:Bag/BagsPackage Type:Export carton

The Description of alumina ceramic tube
Alumina (Al2O3) is the most commonly used industrial ceramic material due to its high mechanical strength, this high-performance. It results in suitable for use in many future-oriented processes. Additionally, the outstanding chemical resistance, great thermal properties and favorable cost of aluminum oxide (Al2O3 content > 90%), it makes alumina as a perfect material for many industries, from electrical applications and high-temperature applications.
Ceramic alumina tubes are found in a variety of electrical/electronic devices, engineering equipment that works as a structural ceramics, so these alumina ceramic tubes are with special shapes, such as flanged, stepped, slotted, multiple holes, half tube, threaded and so on. Sometimes, in order to enhance the breakdown insulation strength and mechanical strength, the cylindrical surface needs to be glazed.

Main characteristics of alumina ceramic tube
1. Extreme high-temperature stability under reducing, inert, and high-vacuum conditions under high temperature up to 1800°C.
2. Great mechanical properties, hardness, compressive and flexural strength are much higher stainless steel
3. Extreme wear and abrasion resistance., over 276 times in comparison with stainless steel
4. Extraordinary electrical insulation, it always us in many high voltage, high-current application
5. Chemical corrosion resistance under high temperature, even if with strong acid or alkali
6. Protective atmospheres or high vacuum at high-temperature to eliminate contamination or impurity.
7. Low material cost in high-level applications than other technical ceramics

The specification of the ceramic tubes
Material options Alumina ( purity from 40% to 99.8%), Zirconia, Composite material
Forming methods Extrusion, Dry pressed, Hot pressed, Ceramic Injection molding, ISO pressed
Dimensional capability The inner diameter can be min.1mm, the outer diameter can max .800mm
Dimensional  tolerance The OD to be 0.005mm, the ID to be 0.01mm, the  length to be 0.001mm
Surface treatment External and internal surface to be polished, glazed or metalized
Secondary processing CNC machining, lapping, threaded, drilling, grinding, precision laser cutting


Technical Datasheet of various advanced ceramic materials

General Properties Unit 99.5% Al2o3 99% Al2O3 96% Al2O3 Steatite YTPZ
ZrO2
SiC
Mechanical Volume
Density
G/cm 3 ≥3.90 ≥3.85 ≥3.65 ≥2.70 ≥6.0 ≥3.13
Hardness HRA 1700 1700 1500 800 1300 2500
Porosity % 0 0 0 0 0 0
Compressive Strength Mpa ≥2240 ≥2240 ≥2000 ≥551 ≥1990 ≥ 2200
Bending
Strength
Mpa ≥379 ≥338 ≥320 ≥190 ≥1200 ≥400
Elastic
Modulus
Gpa 370 350 303 110 210 400
Thermal Thermal Conductivity W/m.K 30 29 24 2.5 3 120~150
Coefficient of Thermal
Expansion
1*10 -6 m/k 6.5~8.0 6.2~8.0 5.0~8.0 7.7~8.0 8.0~9.5 4
Electrical Insulation Breakdown KV/mm 19 18 18 10 17 -
Volume Resistivity Ohm.Cm >1*1014 >1*1014 >1*1014 >1*1013 >1*1011 5*10 6

Application and After-Sales Service:

We offer full range of ceramic washer, spacer, seal ring and other parts for industry applications like bushing, pump seal ring, shaft ring, etc.

Our alumina ceramic rings/loops are exported to USA, Canada, Europe, and South America and Southeast Asia.

After-sales service:

Accept any repair of the product, help to improve technology for customer. And also provide long-term technical help and support for you.

Why Choose Us?

Precision Machining & Fabrication

1/

Quality Control

Our factory has a rigorous, professional and veteran quality assurance team, all processings strictly perform the ISO9001 quality management system.
In order to maintain product performance and stability, and to achieve the level of the industrial standard, we execute incoming quality control, in-process quality control, and outgoing quality as the core processes of our quality system.

2/

Precision Control

We got professional inspection team and equipment, and treat every product to a strict standard, dimensional accuracy up to 0.001mm, we will not to allow failed products to enter the market.

3/

Scalable Capability

We are able to produce a scalable quantity of ceramic parts, even if one-off prototype, or a large scale production, our facilities and expertise is ready to undertake customers' diverse needs.

4/

Prompt Response

For custom parts, you will get free quote within 24 hours (depending on the complexity), and to meet the urgent needs, we keep material in stock to make the lead time shorter.
