Zirconia Ceramic Parts

  • Advanced Zirconia Ceramic Insulating Tube for Thermal Switch
  • Advanced Zirconia Ceramic Insulating Tube for Thermal Switch
Advanced Zirconia Ceramic Insulating Tube for Thermal SwitchAdvanced Zirconia Ceramic Insulating Tube for Thermal Switch

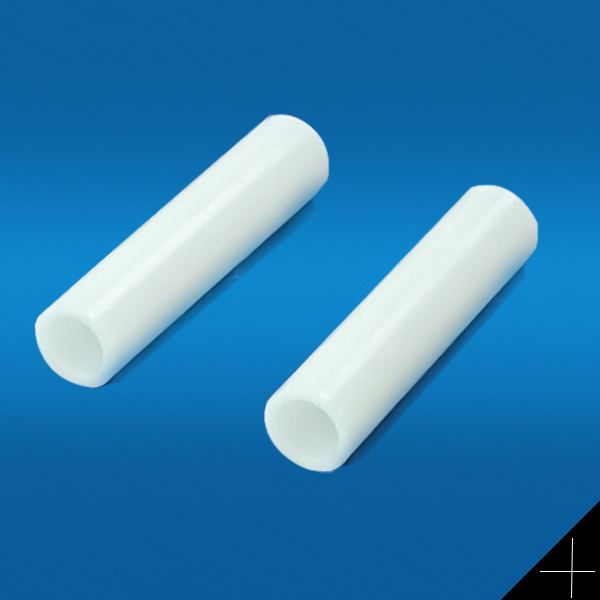

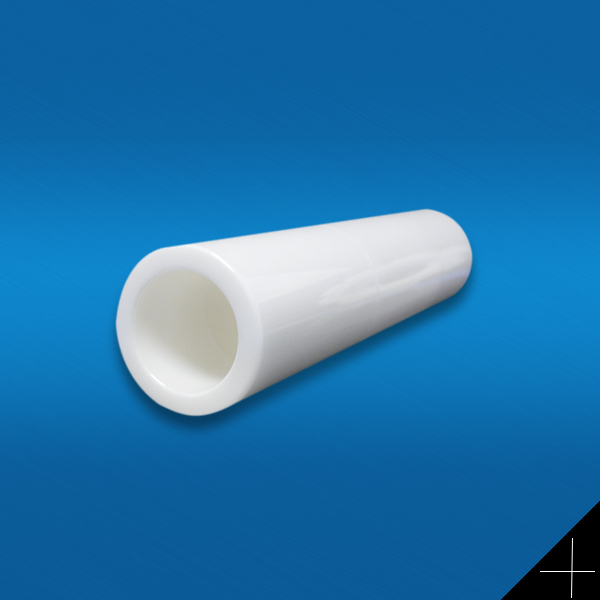

Advanced Zirconia Ceramic Insulating Tube for Thermal Switch

  • Application: Ceramic Decorations, Refractory, Structure Ceramic, Industrial Ceramic, Machinery, Electronic, Chemical, Petroleum etc.
  • Material: Zirconia Ceramic
  • Color: White/Ivory
  • Density: 3.8g/cm3
  • Product description: OEM 95 96 99 Machining IndustrialZirconia Ceramic Tube Pipe
  • INQUIRY   EMAIL
Product Description:

High Precision Industrial Custom Alumina Zirconia Ceramic Bush for Pump
The main features of zirconia ceramic plunger and piston
1.High density:  over 6 g/cm3, which makes it the densest body of the ceramic products
2.High hardness: over 9 on Mohs scale, diamond being 10, with a satin-smooth surface finish
3.High toughness: over 1200 MPa, approx. 4 times in comparison with 95% alumina
4. Excellent wear resistance, it's much better than aluminum oxide ceramics with longer life cycle
5. Low thermal conductivity:  less than 3 W/m.k at ambient temperature, so it's an ideal thermal material
6. Good chemical and corrosion resistance, it's equivalent to above 99% alumina
The specification of ceramic parts

Material option Zirconia (ZrO2),  Alumina(Al2O3), Silicon carbide(SiO2), Silicon nitride(Si3N4)
Forming methods Dry pressed, Ceramic injection molding, Hot pressed, ISO pressed
Specification OD can be from 1 to 50mm, length can be from 10mm to 800mm
Precision processing CNC machining, Precision grinding, Polishing, Lapping,
Tolerance The tolerance of OD and ID can be 0.001mm,  the tolerance of length can be 0.001mm
Key parameters Roughness to be 0.02mm, Parallelism to be 0.001mm
Surface quality Free of cracks, foreign contamination, mirror surface better than Ra0.1
The description of zirconia ceramic parts
Zirconia ceramic parts are made of zirconium oxide ceramics which is a kind of strongest technical ceramic material with exceptional strength, high toughness, and superb reliability. These outstanding characteristics result in excellent resistance to wear and corrosion.

We have been offering a selection of partially stabilized zirconia, including Y-TZP( yttria-stabilized), MSZ ( magnesia stabilized ), CSZ- (ceria stabilized). Each stabilized zirconia provides unique and specific properties that meet the demands of extreme applications found in many industries.

With our production capability through CNC, precision grinding machines,  we are able to provide many different level precision zirconia ceramic parts to meet customers' high precision assembly needs.

The gallery of zirconia ceramic parts

Why Choose Us?

Precision Machining & Fabrication

1/

Quality Control

Our factory has a rigorous, professional and veteran quality assurance team, all processings strictly perform the ISO9001 quality management system.
In order to maintain product performance and stability, and to achieve the level of the industrial standard, we execute incoming quality control, in-process quality control, and outgoing quality as the core processes of our quality system.

2/

Precision Control

We got professional inspection team and equipment, and treat every product to a strict standard, dimensional accuracy up to 0.001mm, we will not to allow failed products to enter the market.

3/

Scalable Capability

We are able to produce a scalable quantity of ceramic parts, even if one-off prototype, or a large scale production, our facilities and expertise is ready to undertake customers' diverse needs.

4/

Prompt Response

For custom parts, you will get free quote within 24 hours (depending on the complexity), and to meet the urgent needs, we keep material in stock to make the lead time shorter.
